CNC Router

CNC Router

1. Machine video

2. Machine Parameters

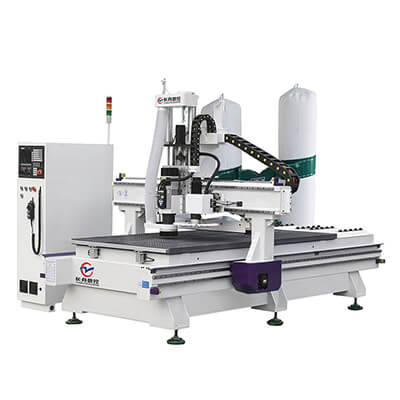

Model	1325 CNC router
Working area	1300*2500*200mm(can be Customized)
Spindle power	1.5KW-9KW
Table Surface	Vacuum table or T-slot table
Frame	Welded Structure
X,Y Transmission system	0-60000mm/min
Z Transmission system	Taiwan HIWIN Rail Linear and Ball Screw
Power Consumption	3.2KW (Without Spindle)
Rapid Travel Rate	<33000mm/min
Working Speed	<25000mm/min
Spindle cooling	Air/water cooling spindle
Spindle Speed	0-18000RPM
Inverter	YAKO/Leadshine
Drive Motors	stepper motor/servo motor
Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
Command Language	G Code
Operating System	DSP/Ncstudio/Mach3
X,Y Resolution	<0.01mm
Software Compatibility	Type3/Ucancam/Artcam
Dust collector	For optional
Lubrication system	Manual/automatic
Material	wood,acrylic,PVC,MDF,marble,rubber,glass,stone,metal,aluminum,etc.

3. Machine Description



CNC router actually is a 3D numerical control system. The professional design and typesetting software in computer performs the design and layout of graphics and texts, automatically generates processing path information, and transmits the tool path data to single-chip microcomputer through the USB interface or other data transmission interface. After the CNC system receives the path data and completes a series of functions such as display and user interaction, the input path information is converted into numerical control information by a specific algorithm, controller converts the information into a signal for driving the motor to control the engraving.  So you can engrave various graphic or three-dimensional graphic texts designed on the computer to realize automatically engraving.

	← 1.Powerful spindle Air cooling and water cooling for optional
→ 2.Machine structure Heavy duty
	← 3. Linear rail Taiwan Hiwin/PMI linear rail
→ 4. Water chiller Cooling the laser tube
	← 5. Mirror and lens USA imported II-VI mirror and lens
→ 6. Exhaust fan Collect the gas
	← 7. Air pump Supply pressure air for the laser head

---

4. Machine applicaition

(1) classification:

Wood working machine CNC router has different type for different application

Woodworking engraving machine, tombstone engraving machine, advertising engraving machine, jade engraving machine, stone engraving machine, cylindrical engraving machine, mold engraving machine, micro engraving machine, PCB circuit board engraving machine, metal engraving machine, glass engraving machine, mold engraving machine.

ATC woodworking CNC router	stone/marble CNC router
multi head CNC router	small CNC router

(2)  Material

Wood carving machine can cut and engrave multi type materials

Acrylic organic board, PVC board, hibiscus board, double color board, wood board, MDF, marble, fire board, rubber board, glass, crystal, ABS board, stone, imitation stone, metal, aluminum-plastic board, etc.

(3)  Business object

Cnc router products are widely used in many place

Advertising companies, decoration companies, hotels, hotels, shopping malls, schools, hospitals, office buildings, entertainment venues, bathing centers, groups, enterprises, administrative agencies, etc.

(4) Application

Cnc router is widely used in many fields and industries

Advertising industry, process industry, mold industry, electronics industry, construction industry, printing and packaging industry, woodworking industry, decoration industry, tombstone industry, crystal products industry, etc.

a.  Advertising industry: advertising signs and logos, , blister molding, other advertising materials decorative products. wood, MDF, bamboo, plastic, PVC, acrylic, double color board, metals, stone etc cutting and engraving.

b. Furniture making: three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft fan windows, mahjong tables, computer desks and auxiliary processing of panel furniture products. wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.

c. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.

d. Model making: Mold industry: It can engrave metal molds such as copper, aluminum and iron, as well as non-metal molds such as artificial marble, sand stone, plastic board, PVC pipe and wood board.

e. Other industries: It can engrave all kinds of large reliefs and shadow carvings, which are widely used in the craft gift industry.









5. Company

Shandong changzhou CNC Equipment Co.,Ltd. is established in 2008,located in jinan city of Shandong province. We are professional manufacturer of laser machine,digital cutting machine,cnc router. all machines gain CE,FDA,ISO 9001 certificate. We have professional design team,quality inspector team,after sales service team to make sure the high quality machine and service.

6. Service

1. We supply 2 years warranty you can come our factory to learn the machine,it’s free of charge.

2. Operation manual and training video are available.

3. Online face to face training is offered,our engineers can speak English.

4. 24 hours technical support is available.

5. Quality inspect department will fully check and test the machine before shipment to ensure high performance and high stability.

7. FAQ

(1) How to choose a right machine?

Please share your material and application to us,we will recommend the right machine.

(2) Is the software free?

Yes,the software are free.

(3) Is the CNC router easy to use

Yes,machine is easy to operate.we supply operation manual and video.also we can help you by "Team viewer"online.

(4) If machine have any problem,how to solve?

Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine,

(5) welcome your inquiry if any other questions..
