Auto Tool Change ATC Wood CNC Router Cutting Machine

Wood Furniture CNC Router Carving Machine
Work Size:
Spindle power :
Cooling style:
Operating System:
Working Voltage:
Availability:
  • CZ-R2
  • Changzhou
  • CZ-R2-001

Product Description

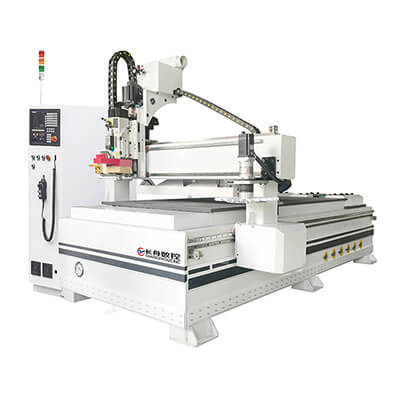

Auto Tool Change ATC Wood CNC Router Cutting Machine


1. Machine Description

ATC CNC router

1. ATC CNC router is made of strong steel tube structure, it is well analyzed and designed with heavy duty and strong structure, which relieves stress and makes working table more steady.

2. ATC wood CNC router adopts well known 9.0KW Italy HSD spindle, which is famous brand and has many after service department all over the world. The ATC wood CNC router adopts air cooling spindle, no need water pump, it is very convenient to use.

3. Auto tool change CNC router is with high performance Japan YASKAWA servo motor, the machine can work in high precision, the servo motor runs smoothly, no vibration phenomenon even in the low speed, and it has a strong ability of overload.

4. The automatic tool changer system which contains 12 or 16 pieces of cutting tools is controlled by CNC Syntec Control system. The tools can be changed very quickly and reliably.

5. Locating bearing, ball screw, linear slide way are controlled by the control system of bed lathe and they are also maintained by the Auto-lubrication system

6. ATC wood router has breakpoint memory function, continuing carving after power outage, forecasting processing time and other functions.

7. The ATC wood cutting machine is compatible with Type3 / Artcam / Castmate, and other CAD / CAM design software.


a (8)


Model

ATC CNC router

Working Area

1300 * 2500mm

Spindle Power

9KW Italy Auto change tool spindle

Table Surface

Vacuum table and positioning pin

Frame

Heavy duty welded structure

Max Working Speed

25m/min

Z Transmission System

Taiwan HIWIN Rail Linear and Ball Screw

Power Consumption

3.2KW (Without Spindle)

Tool Charger

8 / 12 / 16 tools

Control Systel

Taiwan SYNTEC system

Spindle Cooling

Air cooling spindle

Spindle Speed

0 - 24000RPM

Inverter

Delta

Drive Motors

Japan Yaskawa servo motor and driver

Working Voltage

AC380V / 50HZ / 60HZ, 3PH (Option: 220V)

Command Language

G Code

X,Y Resolution

<0.01mm

Software Compatibility

Type3 / Ucancam / Artcam

Lubrication System

Manual / automatic

For Optional

Dust collector

Weight 2650kg


2. Machine Application


ATC CNC router is widely used in different industries.

Woodworking industry: Chairs, doors, windows, beds, cabinet, kitchenware and other furniture, redwood classical and antique furniture, exquisite European furniture, decorative products sculpture.

ATC wood CNC router is widely used in Artwork &Decoration Industry: Woodcrafts, gift box, jewelry box and other exquisite arts & crafts.

ATC wood router is widely used in music Industry: Musical instruments, Loudspeaker box.

Mold Industry: Copper, aluminum, and other metal molds, building models, shoes, badge, embossed mold, biscuit, candy, chocolate mold, artificial marble, plastic sheeting, PVC, wood, foam and other non metallic mold.

ATC CNC router is widely used in advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting, 3D character cutting, acrylic cutting, LED / Neon channel, lightbox.



a (1)


3. Company


Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008, locates in Jinan city of Shandong province. We are a professional manufacturer of laser machine, digital cutting machine, cnc router. all machines gain CE, FDA, ISO 9001 certificate. We have professional design team, quality inspector team, after sales service team to make sure the high quality machine and service.


factory


 1. We supply 2 years warranty. you can come to our factory to learn the ATC CNC router, it's free of charge.

 2. Operation manual and training videos of ATC wood CNC router are available.

 3. Online face to face training is offered, our engineers can speak English.

 4. 24 hours technical support is available.

 5. Quality inspect team will check and test the auto tool change CNC router before shipment to ensure high performance and high stability.



4. FAQ


(1) How to choose a right auto tool change router?

Please share your material and application to us, we will recommend the right ATC CNC router.

(2) Is the software free?

Yes, the software of ATC wood CNC router is free.

(3) Is the ATC CNC router easy to use?

Yes, ATC CNC router is easy to operate. we supply operation manual and video.also we can help you by "Team viewer" online.

(4) If the machine has any problem, how to solve it?

Free parts send to you in the machine warranty period if your machine have any problem. Free after sales service life for machine,

(5) welcome your inquiry if any other questions..
