Wood Door Cabinet CNC Router Cutting Machine

Wood router is widely used to make wood doors, cabinet, desk, bed, etc wood furnitures.
Work Size:
Spindle power :
Cooling style:
Operating System:
Working Voltage:
Availability:
  • CZ-R2
  • Changzhou
  • CZ-R2-001
Product Description

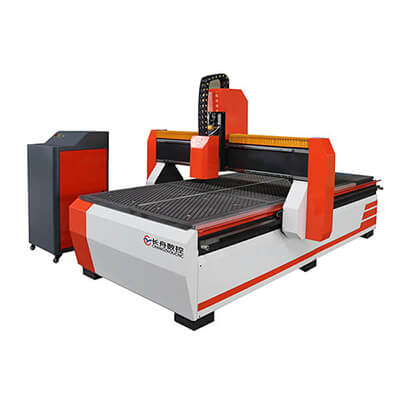

Wood Door Cabinet CNC Router Cutting Making Machine


1. Machine Description


 1. Wood router uses square tube machine bed. Has more solid structure and strong stability as low center of gravity. Whole machine is welded with seamless steel structure. The rigidity is good, not easy to be deformed.

2. Wood cutting router uses high precision Germany linear square tracks, with ball sliders in two arrays and four rows. Makes large load bearing and stable working.

3. Wood cabinet CNC router uses high power spindle. Not only has good performance in wood work, but it is also strong enough to engrave and cut copper, aluminum, iron, and other metals.

4. Wood cutting router uses imported rack and gear transport system. Largely improve the speed of the machine.

5. Wood  cutting router uses imported linear square rails. Good loading capacity, smooth operation and high precision, long life time.


未标题-1 (1)


Model

Wood Router

Work Area

1300 * 2500 * 200mm

Spindle Power

1.5KW - 9KW

Table Surface

Vacuum table or T - slot table

Frame

Welded Structure

X, Y Transmission System

0 - 60000 mm/min

Z Transmission System

Taiwan HIWIN Rail Linear and Ball Screw

Power Consumption

2.6KW (Without Spindle)

Rapid Travel Rate

< 33000 mm/min

Working Speed

< 25000 mm/min

Spindle Cooling

Air / water cooling spindle

Spindle Speed

0 - 24000RPM

Inverter

YAKO / Leadshine

Drive Motors

stepper motor / servo motor

Work Voltage

220V / 380V, 50 / 60Hz

Command Language

G Code

Operating System

DSP / Ncstudio / Mach3

X, Y Resolution

< 0.01mm

Software Compatibility

Type3 / Ucancam / Artcam

Dust Collector

For optional

Lubrication System

Manual / automatic

Material

wood, acrylic, PVC, MDF, marble, rubber, glass, stone, metal, aluminum, etc.


2. Machine Application


Wood router is widely used in different industries.

1. Woodwork industry: wood cutting router is widely used to make wood crafts, picture frames cutting, handicraft carving wave plates, wooden door and etc.

2. Advertising industry: advertising materials such as PVC, acrylic, double color plate.

3. Stone working industry: such as marble, granite, artificial stones, tombstones, milepost, ceramic tile, glass and etc.

4. Metal industry: carving aluminum, copper, stainless steel and so on.

5. Art craft: engraving characters of any languages and graphics on wood.



wood working machinery


3. Company


Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008. Locates in Jinan city of Shandong province. Our company integrates research and development, production, sales and maintenance services. We are a global  company producing laser machine, CNC Router, digital knife cutting machine. All machines gain CE, FDA, ISO 9001 certificate. We have design team, quality inspector team, after sales service team to make sure the high quality machine and service.


factory


1. We supply 2 years warranty for the wood CNC router. You can come to our factory to learn the wood router. It’s free of charge.

2. Operation manual and train videos are available for the wood cutting router.

3. Online face to face training is offered, our engineers can speak English.

4. 24 hours technical support is available.

5. Quality inspect team will fully check and test the woodwork router before shipment.


4. FAQ


Q1: This is the first time I buy the wood router, is it easy to operate?

We will provide the operation manuals or videos of the wood cutting router. We can also help you by "Team viewer"online. Engineers will show you to operate the machine.

Q2: How to choose a suitable woodwork router?

Please tell us your material, size, and the request of machine function. We can recommend the suitable machine according to your need.

Q3. If wood working machinery has any problem after I ordered it, what could I do?

Free parts send to you in machine warranty period if it has any problem. Free after sales service for machine. Please feel free contact us if your machine has any problem. Engineers will guide you to check the machine to find the problem and solve it.

Q4. What's your date of delivery?

For standard wood router, about 10 - 15 working days;  For customized wood working machine, about 15 - 20 working day.
