Multi Two Double Heads Wood CNC Router Milling Machine

Wood CNC router with mulit heads
Laser Power:
Laser Source:
Software:
Control System:
Rotary Device :
Availability:
  • CZ-R2
  • Changzhou
  • CZ-R2-001
Product Description

Multi Two Double Heads Wood CNC Router Milling Machine


1. Machine Description

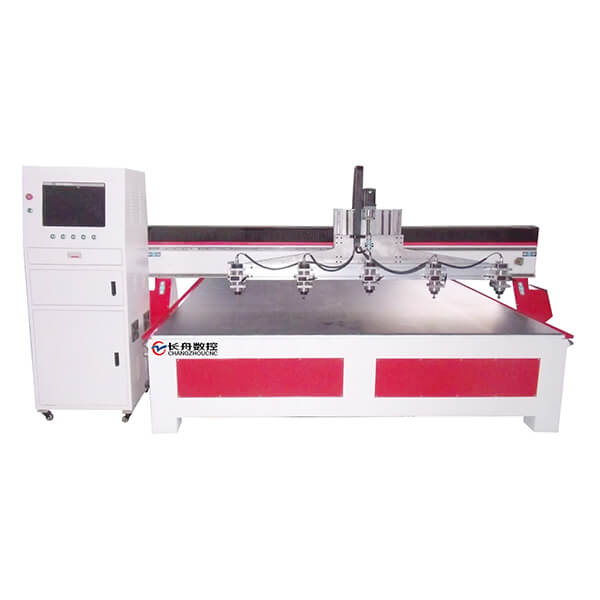

Multi heads CNC router has 2 - 12 heads spindles for optional.


未标题-1 (1)


CNC router milling machine has multi spindles that can work together or separately.


222 (1)


1. 8mm thickness heavy duty seamless steel structure, guarantee excellent stability and avoid deforming.

2. Multi spindles can process several parts at the same time to save time and improve the working efficiency.

3. Imported servo driving system and electric source to achieve 3 axis simultaneous Motion.

4. 3 axis equipped with imported square linear guide, which has high precision, fast speed and wears resistance.

5. Computer online Multech control system, make full use of the motor and realize high speed processing.

6. Be compatible with mostly popualr software, such as type3, CASTMATE, ARTCAM.

7. Simple Operation and Humanization design. Memory function help realizes intermittent carving.


Model

Multi heads CNC Router

Working Area

1300 * 2500 * 200mm (can be Customized)

Spindle Power

1.5KW - 9KW

Table Surface

Rotary table and T - slot flat table

Frame

Welded Structure

X, Y Transmission System

0 - 60000mm/min

Z Transmission System

Taiwan HIWIN Rail Linear and Ball Screw

Power Consumption

3.2KW (Without Spindle)

Rapid Travel Rate

<33000mm/min

Working Speed

<25000mm/min

Spindle Cooling

Air / water cooling spindle

Spindle Speed

0 - 24000RPM

Inverter

YAKO / Leadshine

Drive Motors

stepper motor / servo motor

Working Voltage

AC380V, 50 / 60Hz, 3PH (Option: 220V)

Command Language

G Code

Operating System

DSP / Ncstudio / Mach3

X,Y Resolution

<0.01mm

Software Compatibility

Type3 / Ucancam / Artcam

Dust Collector

For optional

Lubrication System

Manual / automatic

Material

wood, acrylic, PVC, MDF, marble, rubber, glass, stone, metal, aluminum, etc.


2. Machine Application


Multi heads CNC router is widely used for different markets

1. Woodworking: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments, etc.

 2. Advertising: billboard, logo, sign, 3D characters cutting, acrylic cutting, LED / neon channel, literal hole cut, lightbox mold, stamp, mould

3. Die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC, etc

4. Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum, copper, etc.


a (1)



CNC router Applicable materials:

Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.


3. Company


Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008, locates in Jinan city of Shandong province. We are a professional manufacturer of laser machine, digital cutting machine, CNC router. all machines gain CE, FDA, ISO 9001 certificate. We have professional design team, quality inspector team,after sales service team to make sure the high quality machine and service.


factory


1. We supply 2 years warranty you can come our factory to learn the CNC woodworking machine, it’s free of charge.

2. Operation manual and training videos are available.

3. Online face to face training is offered, our engineers can speak English.

4. 24 hours technical support is available.

5. Quality inspect department will fully check and test the CNC woodworking machine before shipment to ensure high performance and high stability.


4. FAQ



(1) How to choose a right CNC router milling machine?

Please share your material and application to us, we will recommend the right 3D wood carving machine.

(2) Is the software free?

Yes, the software of 3D wood CNC router is free

(3) Is the CNC  woodworking machine easy to use

Yes, CNC woodworking machine is easy to operate. we supply operation manual and video.

You can operate the 3D wood carving machine in two days with our assist.

(4) welcome your inquiry if any other questions..
