Stone CNC Engraving Carving Machine

Stone engraving machine is designed for cabinets artificial stone, quartz stone, granite, marble, carving, cutting, polishing, drilling, engraving. Now the stone carving machine is with good price.
  • CZ-R2

  • Changzhou

  • CZ-R2-020

Work Size:
Spindle power :
Cooling style:
Operating System:
Working Voltage:
Availability:

Product Description

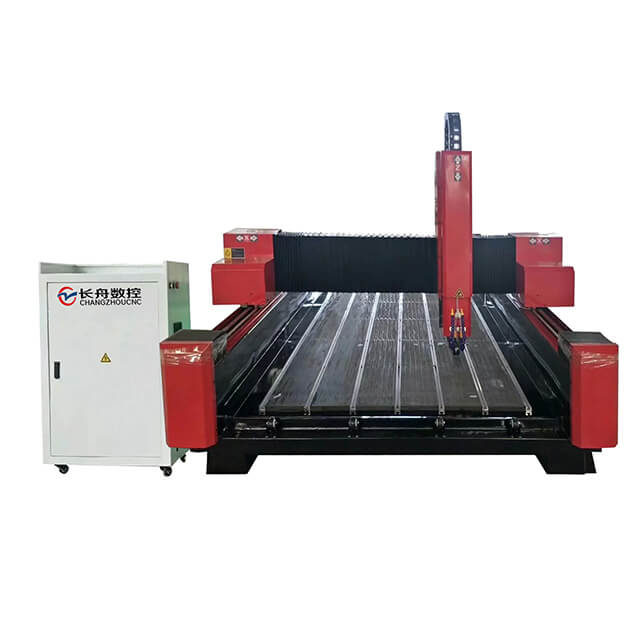

Stone CNC Engraving Carving Machine


1. Machine Description


stone carving machine


1. Stone engraving machine uses T type heavy duty machine structure. Good weight bearing capacity, not easy to deformation, the special machine bed design, can bearing more than 2000kgs materials.

2. Stone carving machine uses special designed Z axis. Can increase the stone relief accuracy, can solve the Z axis belt or ball screw breaking problem.

3. Stone CNC carving machine has waterproof and dustproof system for X Y Zaxis. Can protect all the parts, reduce the machine fault, enlarge the lifetime.

4. Stone engraving machine uses high quality driven motor to ensure that the machines high speed and accuracy.

5. Stone engraving machine uses well known brands of water cooling spindle. Low noise, strong cutting ability to ensure the long time working.


Model

1325 Stone carving machine

Work Area

1300 * 2500 * 200mm

Spindle Power

1.5KW - 9KW

Table Surface

T - slot table

Frame

Welded Structure

X, Y Transmission System

0 - 60000mm/min

Z Transmission System

Taiwan HIWIN Rail Linear and Ball Screw

Power Consumption

3.2KW (Without Spindle)

Rapid Travel Rate

< 33000mm/min

Work Speed

< 25000mm/min

Spindle Cooling

Air / water cooling spindle

Spindle Speed

0 - 24000RPM

Inverter

YAKO / Leadshine

Drive Motors

stepper motor / servo motor

Work Voltage

AC380V / 50HZ /60HZ, 3PH (Option: 220V)

Command Language

G Code

Operate System

DSP / Ncstudio / Mach3

X, Y Resolution

<0.01mm

Software

Type3 / Ucancam / Artcam

Dust Collector

For optional

Lubrication System

Manual / automatic

Material

wood, acrylic, PVC, MDF, marble, rubber, glass, stone, metal, aluminum, etc.



2. Machine Application


stone cnc carving machine


1. The stone carving machine is suitable for marble, granite, bluestone, sandstone, stone, tombstone, milestone, jade, crystal, ceramics, glass, plastic, wood, bamboo, sphere, stainless steel, iron, copper, aluminum, etc, it can do 3D engraving, line engraving, bevelling, drilling and 2D carving.

2. Granite stone can be layered carving to 5mm by the stone engraving machine.

3. Marble, bluestone can be carved to 5mm one time by the stone carving machine.

4. The stone engraving machine can carve characters, letters, pattern, intaglio, relief, handwriting, ancient calligraphy, atrazine colored drawing, flat carving colored drawing on stone, glass. The depth can be controlled optionally to reach the artistic effect.


3. Company


Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008, locates in Jinan city of Shandong province. We are a professional manufacturer of laser machine, digital cutting machine, CNC router. all machines gain CE, FDA, ISO 9001 certificate. We have professional design team, quality inspector team, after sales service team to make sure the high quality machine and service.


factory


1. We supply 2 years warranty. you can come to our factory to learn the stone engraving machine, it’s free of charge.

2. Operation manual and training videos are available.

3. Online face to face training is offered, our engineers can speak English.

4. 24 hours technical support is available.

5. Quality inspect team will check and test the stone carving machine before shipment to ensure high performance and high stability.


4. FAQ



(1) How to choose a right stone CNC carving machine?

Please share your material and application to us, we will recommend the stone carving machine.

(2) Is the software free?

Yes, the software of the stone engraving machine is free.

(3) Is the CNC router machine easy to use?

Yes, stone engraving machine is easy to operate. we supply operation manual and videos.

You can operate the stone engraving machine in two days with our assist.

(4) welcome your inquiry if any other questions...
