Product Description

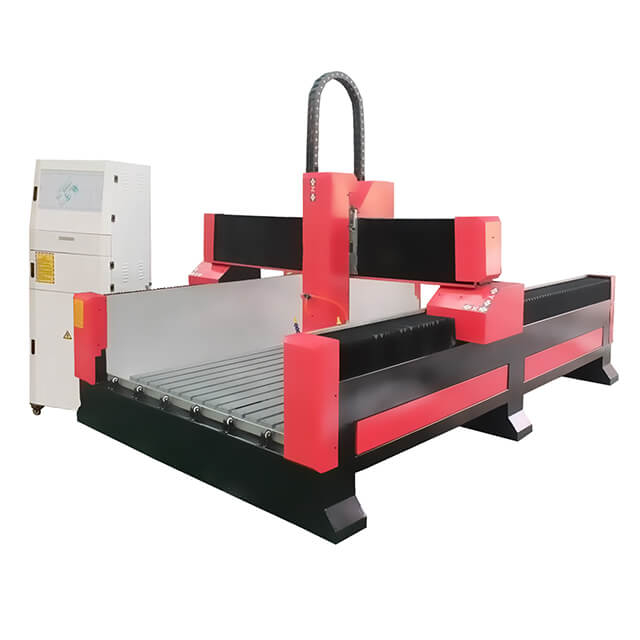

China CNC Router For Marble Stone Granite Tombstone
1. Machine Description
1. CNC router for stone adopts import Taiwan Hiwin (or PMI) square linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime.
2. CNC router for marble has the waterproof, dustproof system for X, Y, Z three axis.
3. CNC router for granite uses Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity,
4. CNC router for tombstone uses Constant power spindle and motor, hightly cutting capability, high efficiency.
5. CNC router for stone is compatible with software CAD / CAM, such as Type 3, Artcam, Castmate, Wentai, Coreldraw.
6. CNC router for marble uses double direction cutters cooling system to prolong the lifetime.
7. CNC router for tombstone uses high flexibility and uneasy distorted cable, imported electronic components guarantee the stability of the machines.
Model | CNC router for stone |
Work Area | 1300 * 2500 * 200mm |
Spindle Power | 1.5KW - 9KW |
Table Surface | T - slot table |
Frame | Welded Structure |
X, Y Transmission System | 0 - 60000mm/min |
Z Transmission System | Taiwan HIWIN Rail Linear and Ball Screw |
Power Consumption | 3.2KW (Without Spindle) |
Rapid Travel Rate | < 33000mm/min |
Work Speed | < 25000mm/min |
Spindle Cooling | Air / water cooling spindle |
Spindle Speed | 0 - 24000RPM |
Inverter | YAKO / Leadshine |
Drive Motors | stepper motor / servo motor |
Work Voltage | AC380V / 50HZ /60HZ, 3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP / Ncstudio / Mach3 |
X, Y Resolution | < 0.01mm |
Software | Type3 / Ucancam / Artcam |
Dust Collector | For optional |
Lubrication System | Manual / automatic |
Material | wood, acrylic, PVC, MDF, marble, rubber, glass, stone, metal, aluminum, etc. |
2. Machine Application
CNC router for stone application materials
Stone, marble, granite, wood, soft metal, rubber, acrylic, plastic and so on.
CNC router for marble application markets
Engraving characters, letters, pattern, intaglio, relief, handwriting, atrazine colored drawing, flat carving colored drawing, etc. on stone, glass, depth can control optionally, to reach the artistic effect.
1. CNC router for stone is suitable for natural marble, granite, bluestone, sandstone, stone, tombstone, milestone, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, can doing 3D engraving, and line engraving, beveling, drilling 2D engraving.
2. Such as granite stone can be layered engraving to 3mm.
3. Marble, bluestone can be engraving to 5mm one time.
Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008, locates in Jinan city of Shandong province. We are a professional manufacturer of laser machine, digital cutting machine, CNC router. all machines gain CE, FDA, ISO 9001 certificate. We have professional design team, quality inspector team, after sales service team to make sure the high quality machine and service.
1. We will supply the CNC router for tombstone operation manuals and videos in English version.
2. Customer can come to our factory to learn the CNC router for stone.
3. Our company has an international technical service team and provides 24 hours of online services and technical support for customers.
4. Our workers have rich experience, they can produce machines professional and skilled, so make the machine with high quality and can work well.
5. All the parts of our machines are famous brands in China or in international, so it makes sure our machines have high quality and long lifetime.
4. FAQ
Q1: I knew nothing about this CNC router for marble, what kind of machine I should choose?
It's easy to choose, please tell us: 1. the work you want to do? 2. the maximum size of your material, then we will give you perfect solutions and suggestions.
Q2: When I get this CNC router for tombstone, but I did not know how to use it, What should I do?
We will send video and English version manual with the machine, If you still have some doubts, we can talk by telephone or skype. Or even send our engineers oversea to help you.
Q3: If some problems happened to this stone CNC router during the warranty period, what should I do?
We will supply free parts in machine warranty period if the machine has some problem, While we also supply free after-service, so any doubts, just let us know, we will give you solutions.
Q4: What is the delivery time?
For standard machines the delivery time is 7-15 days. for customized machines delivery time is 20 days.
Q5: What’s the payment term
Payment term is telegraphic transfer, 50% as deposit and the balance 50% pay before shipping.
