Product Description

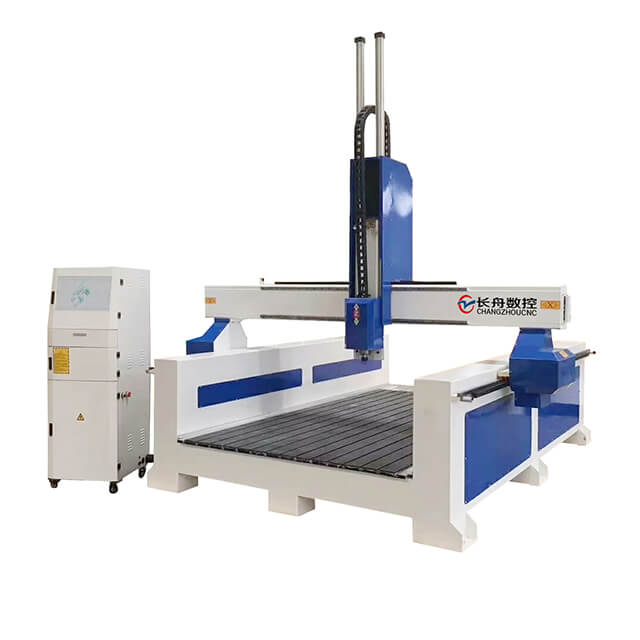

Stone CNC Router Cutting Machine with Best Price
1. Machine Description
1. Stone CNC router uses steel tube lathe bed. Low center of gravity, strong bearing capacity, not easy to deformation, stable and reliable operation.
2. Stone cutting machine adopts Ncstudio control system. Through computer operation, easy and simple to operate. DSP handle offline control is optional.
3. Stone CNC router uses Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.
4. Stone cutter machine uses German double nut automatically disappear gap ball screw.
5. Stone cutting machine has break point and break knife continue engraving function, can engrave at any place as you like.
6. Stone CNC router is compatible various CAD / CAM software like Type3 / artcam / castmate / proe / Corelerow / Wentai.
7. Stone cutting machine adopts high power water cooling spindle. Offer excellent cooling effect when carving wood, protect spindle when continuous working for a long time.
8. Y Axis is with two motors, guarantee the cutting strength and engraving precision.
Model | 1325 Stone CNC router |
Work Area | 1300 * 2500 * 200mm |
Spindle Power | 1.5KW - 9KW |
Table Surface | T slot table |
Frame | Welded Structure |
X, Y Transmission system | 0 - 60000mm/min |
Z Transmission system | Taiwan HIWIN Rail Linear and Ball Screw |
Power Consumption | 5.5KW (Without Spindle) |
Rapid Travel Rate | < 33000mm/min |
Work Speed | < 25000mm/min |
Spindle Cooling | Water cooling spindle |
Spindle Speed | 0 - 24000RPM |
Inverter | YAKO / Leadshine |
Drive Motors | stepper motor / servo motor |
Work Voltage | AC380V, 50 / 60Hz, 3PH (Option: 220V) |
Command Language | G Code |
Operate System | DSP / Ncstudio / Mach3 |
X, Y Resolution | < 0.01mm |
Software | Type3 / Ucancam / Artcam |
Dust Collector | For optional |
Lubrication System | Manual / automatic |
Material | wood, acrylic, PVC, MDF, marble, rubber, glass, stone, metal, aluminum, etc. |
2. Machine Application
1. The stone CNC router is suitable for marble, granite, bluestone, sandstone, stone, tombstone, milestone, jade, crystal, glass, plastic, wood, bamboo, sphere, stainless steel, iron, copper, aluminum, etc, it can do 3D engraving, line engraving, bevelling, drilling and 2D carving.
2. Granite stone can be layered carving to 5mm.
3. Marble, bluestone can be carved to 5mm one time.
4. Stone cutting machine can carve characters, letters, pattern, intaglio, relief, handwriting, flat carving colored drawing on stone, glass. The depth can be controlled optionally to reach the artistic effect.
Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008. Locates in Jinan city of Shandong province. We are a factory of laser machines, digital cutting machines, CNC router. All machines gain CE, FDA, ISO 9001 certificate. We have design team, quality inspector team, after sales service team to make sure the high quality machine and service.
1. We supply 2 years warranty. You can come to our factory to learn the stone cnc cutting machine. It’s free of charge.
2. Operation manual and training videos are available.
3. Online face to face training is offered, our engineers can speak English.
4. 24 hours technical support is available.
5. Quality inspect department will fully check and test the stone cutting machine before shipment to ensure high performance and high stability.
4. FAQ
(1) How to choose a right stone CNC router?
Please share your material and application to us. We will recommend the right stone CNC router.
(2) Is the software free?
Yes, the software of the stone CNC router is free.
(3) Is the stone CNC router machine easy to use?
Yes, stone cutting machine is easy to operate. We supply operation manual and video.
You can operate the stone CNC router in two days with our assist.
(4) welcome your inquiry if any other questions.
