3D Wood CNC Carving Router Woodworking Machine

CNC woodworking machine is widely used to engrave wood sheet and round cylinder. 360° wood carving and engraving.
  • CZ-R2

  • Changzhou

  • CZ-R2-001

Work Size:
Spindle power :
Cooling style:
Operating System:
Working Voltage:
Availability:

Product Description

3D Wood CNC Carving Router Woodworking Machine


1. CNC Woodworking Machine Description


3D wood carving machine is a multi functional CNC router. It has two type tables, flat table and 3D rotary table. The flat table is detachable. 3D rotary table is under the flat table.

3D wood carving machine


3D wood carving machine can cut and engrave both round wood and panel wood.


3D wood cnc router


1. 3D wood carving machine is welded with thick square seamless steel structure. Excellent stability and precision.

2. 3D CNC router uses high power spindle with constant power. Low noise and super strong cutting force, improve working efficiency.

3. 3D CNC router uses amous brand drivers and motors with powerful strength, fast work speed.

4. CNC woodworking machine is compatible with CAD / CAM software e.g. Type 3 / Artcam / Castmate / Wentai and etc.

5. Wood carving router has the function of re carving from breakpoint if power failure.

6. 3D wood carving machine has the function of forecasting process time.

7. CNC woodworking machine adopts advanced NCstuido system and DSP, convenient operation.

8. We will provide you a set of cutting knives and a toolbox with other accessories.


Model

1325 CNC woodworking machine

Work Area

1300 * 2500 * 200mm

Spindle Power

1.5KW - 9KW

Table Surface

Rotary table and T - slot flat table

Frame

Welded Structure

X, Y Transmission System

0 - 60000mm/min

Z Transmission System

Taiwan HIWIN Rail Linear and Ball Screw

Power Consumption

3.2KW (Without Spindle)

Rapid Travel Rate

< 33000mm/min

Work Speed

< 25000mm/min

Spindle Cooling

Air / water cooling spindle

Spindle Speed

0 - 24000RPM

Inverter

YAKO / Leadshine

Drive Motors

stepper motor / servo motor

Work Voltage

AC380V, 50HZ / 60HZ, 3PH (Option: 220V)

Command Language

G Code

Operating System

DSP / Ncstudio / Mach3

X, Y Resolution

< 0.01mm

Software

Type3 / Ucancam / Artcam

Dust Collector

For optional

Lubrication System

Manual / automatic

Material

wood, acrylic, PVC, MDF, marble, rubber, glass, stone, metal, aluminum, etc.


2. CNC Woodworking Machine Application


wood cnc carving machine


(1) Material

3D wood carving machine can cut and engrave multi type materials

Acrylic board, PVC board, hibiscus board, double color board, wood board, MDF, marble, fireboard, rubber board, glass, crystal, ABS board, stone, metal, etc.

(2) Application

CNC woodworking machine is widely used in many fields and industries

Advertising industry, mold industry, electronics industry, construction industry, print and package industry, woodwork industry, decoration industry, tombstone industry, crystal products industry, etc.

a.  Advertising industry: advertising signs and logos, blister molding, decoration products. wood, MDF, bamboo, plastic, PVC, acrylic, double color board, metals, stone etc cutting and engraving.

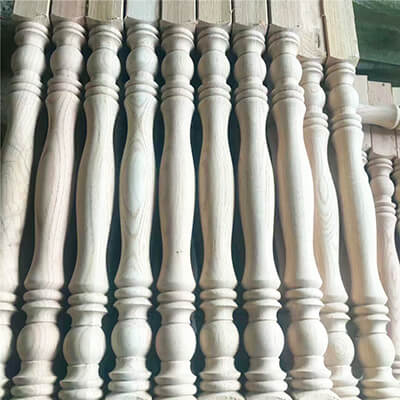

b. Furniture making: 3D wave board, cabinet doors, solid wood doors, craft wooden doors, screens, craft fan windows, computer desks and etc. wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.

c. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.

d. Model making: Mold industry: It can engrave metal molds such as copper, aluminum and iron, as well as nonmetal molds such as marble, sandstone, plastic board, PVC pipe and wood board.

e. Other industries: wood carving router can engrave all kinds of large reliefs and shadow carvings, which are widely used in the craft gift industry.


3. Company




Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008. Locates in Jinan city of Shandong province. We are specialized in making and exporting laser machine, CNC Router, digital knife cutting machine. We have exported our machine to more than 50 countries, Now we have more than 2000 sets of machines all around world. All machines gain CE, FDA, ISO 9001 certificate. We have design team, quality inspector team, after sales service team to make sure the high quality machine and service.


factory


1. We supply 2 years warranty. You can come to our factory to learn the CNC woodworking machine. It’s free of charge.

2. 3D CNC router has operation manual and train videos.

3. Online face to face train is offered for the wood carving router, our engineers can speak English.

4. 24 hours technical support is available for the wood carving machine.

5. Quality inspect team will check and test the CNC woodworking machine before shipment to ensure high performance and high stability.


4. FAQ



(1) How to choose a right 3D wood carving machine?

Please share your material and application to us, we will recommend the right 3D wood carving machine.

(2) Is the software included?

Yes, we will send the software together with the machine, and the software of 3D wood CNC router is free.

(3) Is the CNC woodworking machine easy to use?

Yes, wood carving router is easy to operate. we supply operation manual and video.

You can operate the 3D wood carving machine in two days with our assist.

(4) What's the warranty of the 3D CNC router

We offer 3 years warranty for the 3D CNC router. If the machine has problem, we will send you new parts in free of charge.

(5) When you will deliver the machine if i order the 3D wood CNC router

The delivery time is 5 - 7 days after your order.
