3 4 5 Axis CNC Router Machine With Rotary Device

CNC Router Machine with 4th Axis Rotary Device
Work Size:
Spindle power :
Cooling style:
Operating System:
Working Voltage:
Availability:
  • CZ-R2
  • Changzhou
  • CZ-R2-001

Product Description

 4 5 Axis CNC Router Machine With Rotary Device


1. Machine Description

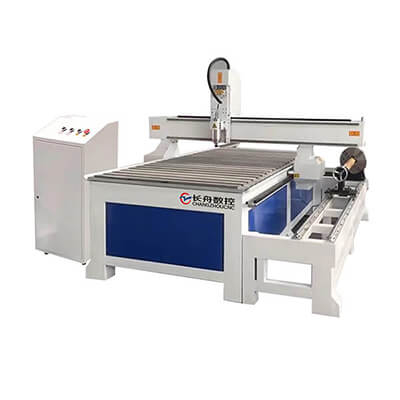

cnc router with 4th axis

Advantages of CZ 5 axis CNC machine.

1. 4 axis CNC machine uses thick square steel weld structure. It has good stability and precision.

2. 5 axis CNC machine is equipped with top quality spindle with constant power. Spindle has low noise and strong cut force. It greatly improves work efficiency.

3. 3 axis CNC router is equiped with famous brand drivers and motors. It has powerful strength and fast work speed.

4. 4 axis CNC router is compatible with CAD / CAM software, Type 3, Artcam, Castmate, Wentai and etc.

5. 5 axis CNC router has the function of re carving from stop point if power is failure.

6. The CNC router machine has the function of forecast process time.

7. 5 axis CNC machine adopts NCstuido system or DSP controller. It's easy to operate the machine.

8. We will supply you one set of knives and a toolbox with other tools.


cnc router with rotary


Model

5 axis CNC router

Work Area

1300 * 2500 * 200mm

Spindle Power

1.5KW - 9KW

Table Surface

Vacuum table or T - slot table

Frame

Welded Structure

X, Y Transmission System

0 - 60000mm/min

Z Transmission System

Taiwan HIWIN Rail Linear and Ball Screw

Power Consumption

3.2KW (Without Spindle)

Rapid Travel Rate

< 33000mm/min

Work Speed

< 25000mm/min

Spindle Cooling

Air / water cooling spindle

Spindle Speed

0 - 24000RPM

Inverter

YAKO / Leadshine

Drive Motors

stepper motor / servo motor

Work Voltage

AC380V, 50 / 60Hz, 3PH (Option: 220V)

Command Language

G Code

Operating System

DSP / Ncstudio / Mach3

X, Y Resolution

< 0.01mm

Software

Type3 / Ucancam / Artcam

Dust Collector

For optional

Lubrication System

Manual / automatic

Material

wood, acrylic, PVC, MDF, marble, rubber, glass, stone, metal, aluminum, and etc.


2. Machine Application


cnc router machine with rotary


(1) classification:

4 axis CNC machine has different types for different need.

Woodwork engraving machine, tombstone engraving machine, advertising engraving machine, stone engraving machine, cylinder engraving machine, micro engraving machine, metal engraving machine, glass engraving machine, mold engraving machine.

(2) Material

5 axis CNC machine can cut and engrave multi type materials.

Acrylic board, PVC board, double color board, wood board, MDF, marble, rubber board, glass, ABS board, stone, metal, aluminum plastic board, and etc.

(3) Business object

3 axis CNC router is widely used in many places.

Advertising company, decoration company, hotel, shop mall, school, hospital, office building, bath center, enterprises and etc.

(4) Application

4 axis CNC router is widely used in many fields and industries.

Advertising industry, mold industry, electronics industry, construction industry, print and package industry, woodwork industry, decoration industry, tombstone industry and etc.

a. Advertising industry: advertising signs and logos, molding, advertising industry, decoration products. wood, MDF, bamboo, plastic, PVC, acrylic, double color board, metals, stone and etc.

b. Furniture making: 3D wave board, cabinet door, solid wood door, craft wooden door, paint free door, craft fan window, computer desks and etc. wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder engraving, 3d photo engraving and etc.

c. Artwork industry: character engraving and cutting, name brand making, small gift cutting. Engrave various decoration letters, figures on small windows, fences, wall, and etc.

d. Model making: 5 axis CNC router can engrave metal molds such as copper, aluminum and iron, as well as nonmetal molds such as marble, sandstone, plastic board, PVC pipe and wood board.

e. Other industries: 5 axis CNC router can engrave all kinds of large reliefs and shadow, which are widely used in the craft gift industry.


3. Company


Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008. Locates in Jinan city of Shandong province. We are a factory of laser machines, digital cutting machines, and CNC router. All machines gain CE, FDA, ISO 9001 certificate. We have design team, quality inspector team, after sales service team to make sure the high quality machines and service.


factory


1. We supply 2 years warranty. You can come to our factory to learn the 5 axis CNC machine. It’s free of charge.

2. Operation manual and train videos are available.

3. Online face to face train is offered, our engineers can speak English.

4. 24 hours technical support is available.

5. To ensure high quality and high stability, quality inspect team will fully check and test the CNC router before shipment.


4. FAQ



(1) How to choose a right CNC router machine?

Please share your materials and need to us, we will recommend a right wood CNC machine.

(2) Is the software free?

Yes, the software of wood CNC machine is free.

(3) Is the machine easy to use?

Yes, 5 axis CNC router is easy to operate. We supply operation manual and videos.

You can operate the CNC router in two days with our assist.

(4) welcome your inquiry if any other questions.
