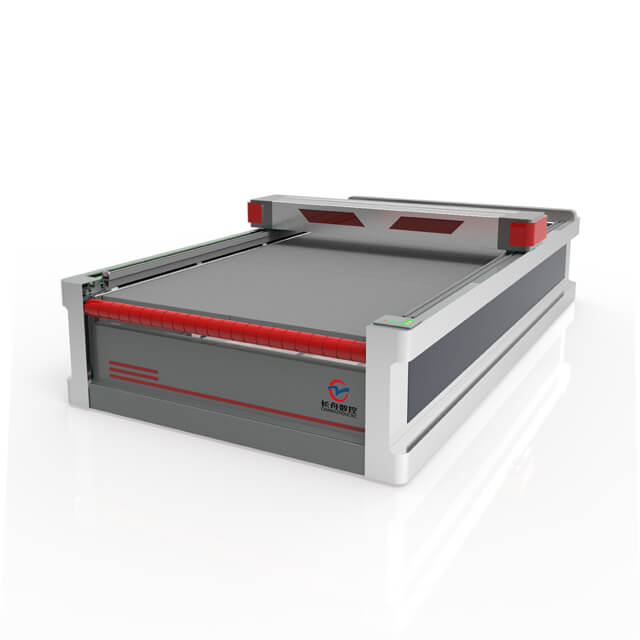

Auto Feeding Laser Cutting Machine

Auto Feeding Laser Cutting Machine

1. Machine video

2. Machine Parameters

Model	CZ-1610	CZ-1620
Working area	1600mmX1000mm	1600mmX2000mm
Laser type	seal CO2 laser tube
Laser power	100W
Warranty	3 years for machine
Engraving speed	0-60000mm/min
Cutting speed	0-30000mm/min
Location precision	≤0.01mm
Power supply	AC 110/ 220V,50/60HZ
Controlling system	RDCAM
Support software	Coreldraw, Photoshop, Autocad etc
Cooling type	water cooling and protection system
Auxiliary device	exhaust fan,air pump,water chiller
Support format	plt, ai, dxf, dwg, bmp, cif, jpg, tga, tiff, etc
Optional parts	up&down table, Auto-focus device, rotary device etc
Material	acrylic,crytal,leather,mdf,paper,plastic,plexiglax,plywood,rubber,stone,wood

3. Machine Description



Laser cutting machine laser power drives the laser tube to generate laser. through the refraction of several mirrors, the laser is transmitted to the laser head, then the focus lens in the laser head focus the light into a point, which can be very high temperature. The material is thus sublimated into a gas by the high temperature laser, the gas is collect away by the exhaust fan, thus achieving the purpose of cutting. Generally, the main gas filled in the laser tube is CO2, so the laser tube is called CO2 laser tube, and the laser cutting machine using the laser tube is called CO2 laser cutting machine.

	← 1. Laser tube RECI,EFR,YONGLI,SPT,different brand for optional
→ 2. Controller Ruida and Trocen controller
	← 3. Linear rail Taiwan Hiwin/PMI linear rail
→ 4. Water chiller Cooling the laser tube
	← 5. Mirror and lens USA imported II-VI mirror and lens
→ 6. Laser heads one or two or three heads
	← 7. Air pump Supply pressure air for the laser head
→ 8. Work table Different type worktable for optional: (1) knife balde table (2) honeycomb table (3) up&down table
	← 9. Auto feeding table For auto feeding table laser cutting machine

---

4. Machine applicaition

Automatic laser cutting machine has different size and type for different market: electronic and electrical industry, clothing industry, leather industry, furniture industry, decoration industry, craft gift industry, advertising industry, packaging and printing industry, model industry, building model, aviation navigation model, wooden toys, industrial panels cutting, punching, proofing, drawing line precision processing.

Automatic laser cutting machine is widely used in different industries.

1. Printing and packaging industry: printing material cutting, paper products laser cutting machine,

2. Craft gift industry: bamboo slip laser engraving machine, wood book laser engraving machine, mahogany laser engraving machine, two-color plate laser engraving machine, box craft laser engraving machine, chessboard laser engraving machine, doll laser engraving machine and etc.

3. Advertising industry: plexiglass laser engraving, plaque laser production, two-color plate laser engraving, acrylic laser engraving and cutting.

4. Leather garment industry: all kinds of shoes, leather and artificial leather cutting, leather surface pattern carving and cutting, all kinds of clothing and textile pattern cutting, large format laser cutting machine,

5. Model making industry: architectural model laser engraving and cutting production, aviation, navigation model laser engraving and cutting production, cartoon character model laser engraving and cutting production, industrial sample model laser engraving and cutting production.

6. Clothing and luggage industry: Chinese clothing, western clothing, embroidered clothing, woolen clothing, silk clothing, cotton clothing, fur clothing, knitwear, down clothing, etc. handbag, shoulder bag, cross-body bag, wallet, backpack, briefcase, computer bag, camera bag, medical bag, travel bag, cosmetic case, leather bag, pu bag, pvc bag, canvas bag, cloth bag, shopping bag, satchels, purse, trolley, trolley bag, kits, suitcase.

Automatic laser cutting machine can cut and engrave many different materials.

acrylic laser cutting machine, cloth laser cutting machine, paper laser cutting machine, leather laser cutting machine, fleece laser cutting machine, felt laser cutting machine, paper laser cutting machine, printing plate laser cutting machine, hot drilling plate laser cutting machine, kraft paper laser cutting machine, plex glass laser cutting machine, large format laser cutting machine, flannel paper laser cutting machine, double multi head laser cutting machine, customized paper-cutting crane laser cutting machine, plush toy laser cutting machine, shoe material hollow laser cutting machine, clean cloth laser cutting machine, filter cloth laser cutting machine.

5. Software and support file

Jeans laser cutting machine has a easy operation software .

1.Software support Win7,Win8,Win10,both 32-bit and 64-bit.

2.Software support both vector and bitmap.it support the file designed by AI,Corel draw,Autocad,Photoshop etc.

3.Support different languages:Chinese, English, French, Portuguese, Russian, Turkish, Germany.

6. Company

Shandong changzhou CNC Equipment Co.,Ltd. is established in 2008,located in jinan city of Shandong province. We are professional manufacturer of laser machine,digital cutting machine,cnc router. all machines gain CE,FDA,ISO 9001 certificate. We have professional design team,quality inspector team,after sales service team to make sure the high quality machine and service.

7. Service

1. We supply 2 years warranty you can come our factory to learn the clothing laser cutting machine,it’s free of charge.

2. Operation manual and training video of clothing fabric laser cutting machine are available.

3. Online face to face training is offered,our engineers can speak English to teach you use the clothing leather laser cutting machine.

4. 24 hours technical support is available.

5. Quality inspect department will fully check and test the clothing jeans laser cutting machine bofore shipment to ensure high performance and high stability.

8. FAQ

(1) How to choose a right machine?

Please share your material and application to us,we will recommend the right machine.

(2) Is the software free?

Yes,the software are free.

(3) Is the laser marking machine easy to use

Yes,machine is easy to operate.we supply operation manual and video.

You can operate the machine in two days with our assist.

(4) welcome your inquiry if any other questions..
