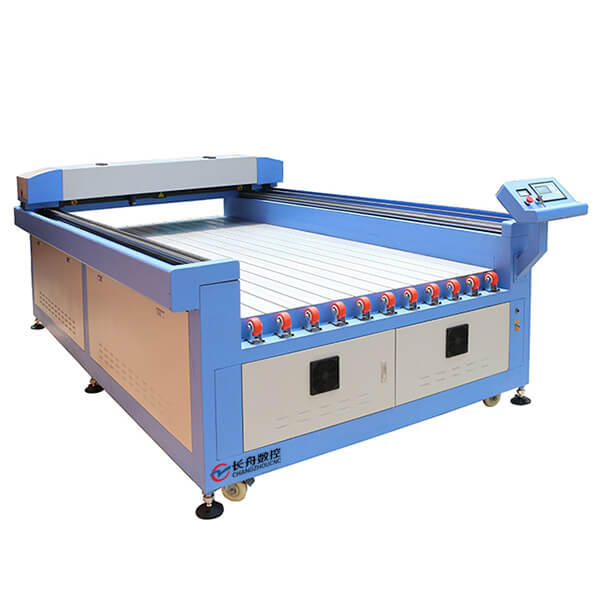

Marble Granite Laser Engraving Machine

Laser Power:
CO2 Laser Tube:
Cooling style:
Control System:
Work Size:
Availability:
  • CZ-L2
  • Changzhou
  • CZ-L2-022
Product Description

Marble Granite Stone Laser Engraving Machine on Marble


1. Machine video




2. Machine Parameters

marble laser engraving machine


Model

1390 laser cutting machine

Work area

1300mm x 900mm

Laser type

seal CO2 laser tube

Laser power

100W

Warranty

3 years for machine

Engraving speed

0 - 60000mm/min

Cut speed

0 - 30000mm/min

Location precision

≤ 0.01mm

Power supply

AC 110 / 220V, 50 / 60HZ

Control system

RDCAM

Support software

Corel draw, Photoshop, Auto cad, etc

Cooling type

water cooling and protection system

Auxiliary device

exhaust fan,air pump,water chiller

Support format

plt, ai, dxf, dwg, bmp, cif, jpg, tga, tiff, etc

Optional parts

up and down table, Auto focus device, rotary device, etc

Material

acrylic, crytal, leather, mdf, paper, plastic, plexiglax, plywood, rubber, stone, wood


3. Machine Description



Wood laser cutting machine laser power drives the laser tube to generate laser. through the refraction of several mirrors, the laser is transmitted to the laser head, then the focus lens in the laser head focus the light into a point, which can be very high temperature. The material is thus sublimated into a gas by the high temperature laser, the gas is collect away by the exhaust fan, thus achieving the purpose of cutting. Generally, the main gas filled in the laser tube is CO2, so the laser tube is called CO2 laser tube, and the wood laser cutting machine using the laser tube is called CO2 laser cutting machine.


granite laser engraving machine

1. Laser tube

RECI, EFR, YONGLI, SPT, different brand for optional

2. Controller

Ruida and Trocen controller

marble photo laser engraving machine

stone photo laser engraving machine

3. Linear rail

Taiwan Hiwin / PMI linear rail

4. Water chiller

Cooling the laser tube

granite photo laser engraving machine

laser engraving machine on marble

5. Mirror and lens

USA imported II - VI mirror and lens

6. Exhaust fan

Collect the gas

marble photo engraving machine

stone photo engraving machine

7. Air pump

Supply pressure air for the laser head

8. Work table

Aluminum profile table for marble

marble laser engraving machine





4. Machine application


marble laser engraving machine

Marble laser engraving machine has different size and type for different market: electronic and electrical, clothing, leather, furniture, decoration, craft gift, advertising, packaging and printing, model, building model, aviation navigation model, wooden toys, industrial panels cutting, punching, proofing, drawing line precision process.


granite laser engraving machine


Plywood laser cutting machine is widely used in different industries.

1. Printing and packaging industry: printing material cutting, paper products laser cutting machine,

2. Craft gift industry: bamboo slip laser engraving machine, wood book laser engraving machine, mahogany laser engraving machine, two color plate laser engraving machine, box craft laser engraving machine, doll laser engraving machine and etc.

3. Advertising industry: plexiglass laser engraving, plaque laser production, two color plate laser engraving, acrylic laser engraving and cutting.

4. Leather garment industry: all kinds of shoes, leather and artificial leather cutting, leather surface pattern carving and cutting, all kinds of clothing and textile pattern cutting, large format laser cutting machine,

5. Model making industry: architectural model laser engraving and cutting production, aviation, navigation model laser engraving and cutting production, cartoon character model laser engraving and cutting production, industrial sample model laser engraving and cutting production.

6. Clothing and luggage industry: Chinese clothing, western clothing, embroidered clothing, woolen clothing, silk clothing, cotton clothing, fur clothing, knitwear, down clothing, etc. handbag, shoulder bag, crossbody bag, wallet, backpack, briefcase, computer bag, camera bag, medical bag, travel bag, leather bag, pu bag, pvc bag, canvas bag, cloth bag, shopping bag, purse, trolley, trolley bag, kits, suitcase.


marble laser engraving machine granite laser engraving machine marble photo laser engraving machine stone photo laser engraving machinegranite photo laser engraving machine laser engraving machine on marble marble photo engraving machine stone photo engraving machinegranite photo engraving machine marble laser engraving machine granite laser engraving machine plywood laser cutting machine




Llaser cutting machine can cut and engrave many different materials.

acrylic laser cutting machine, cloth laser cutting machine, paper laser cutting machine, leather laser cutting machine, fleece laser cutting machine, felt laser cutting machine, paper laser cutting machine, printing plate laser cutting machine, hot drilling plate laser cutting machine, kraft paper laser cutting machine, plex glass laser cutting machine, large format laser cutting machine, flannel paper laser cutting machine, double multi head laser cutting machine, plush toy laser cutting machine, shoe hollow laser cutting machine, clean cloth laser cutting machine, filter cloth laser cutting machine.


5. Software and support file


Dual heads wood laser cutting machine software is easy to operate.

1.Software support Win7, Win8, Win10, both 32 bit and 64 bit.

2.Software support both vector and bitmap. It support the file designed by AI, Corel draw, Auto cad, Photoshop etc.

3.Support different languages:Chinese, English, French, Portuguese, Russian, Turkish, Germany.


marble photo engraving machine


6. Company


Shandong changzhou CNC Equipment Co.,Ltd. is established in 2008. Locates in Jinan city of Shandong province. We are manufacturer of laser machine, digital cutting machine, cnc router. All machines gain CE, FDA, ISO certificate. We have design team, quality inspector team, after sales service team to make sure the high quality machine and service.

stone photo engraving machine

granite photo engraving machine

marble laser engraving machine



6. Service


1. We supply 2 years. Warranty you can come our factory to learn the marble laser engraving machine, it’s free of charge.

2. Operation manual and training video of granite laser engraving machine are available.

3. Online face to face training is offered, our engineers can speak English.

4. 24 hours technical support is available.

5. Quality inspect team will fully check and test the marble laser engraving machine before shipment to ensure high performance and high stability.

granite laser engraving machine

marble photo laser engraving machine


7. FAQ


(1) How to choose a right machine?

Please share your material and application to us, we will recommend the right marble engraving machine.

(2) Is the software free?

Yes, the software are free.

(3) Is the laser machine easy to use

Yes, granite engraving machine is easy to operate. we supply operation manual and video.

You can operate the machine in two days with our assist.

(4) welcome your inquiry if any other questions..
