Jewelry Bracelet Ring Fiber Laser Marking Engraving Machine

According to the type of laser, laser marking machine mainly has three types:fiber laser marking machine, CO2 laser marking machine and UV laser marking machine.
Laser Power:
Laser Source:
Software:
Control System:
Rotary Device :
Availability:
  • CZ-M2
  • Changzhou
  • CZ-M2-013

Product Description

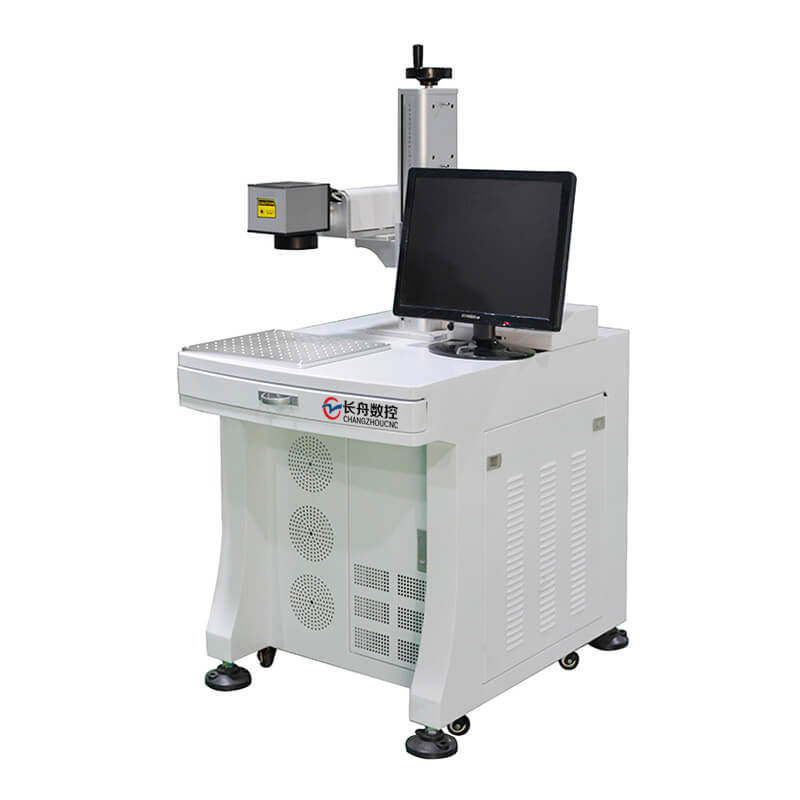

Jewelry Bracelet Ring Fiber Laser Marking Engraving Machine


1.Machine video



2.Machine Parameters

fiber laser marking machine



Mark Area

110 * 110mm - 300 * 300mm

Laser Source

IPG, Raycus, Max, JPT, Synrad

Laser Power

20W, 30W, 50W, 100W

Lens

Wavelength (import from Singapore)

Galvanometer

Sino galvo

Life Time

> 100000h

Mark speed

≤ 12000mm/s

Rotary device

For optional

Computer

Lenovo

Cooling

Air cooling

Wavelength

Sino galvo

Elevator

500mm - 800mm

Power requirement

220v / 110v, 50hz / 60hz

File format

JPG, BMP, DWG, DXF, AI, PLT, etc.

material

metal, wood, acrylic, glass, crystal, PVC, PCB, plastic etc


3. Machine Description


 The laser source generates a pulsed light wave, the laser light beam is expanded by the beam expander and transmitted to the scanning galvanometer. The scanning mirrors of the X axis and the Y axis direction are driven by the servo motor to perform optical scanning, The lens focuses the laser to concentrate the laser energy and mark on the work plane. The entire process is controlled by the computer program.


ring fiber laser marking machine

1. Laser source

different brand for optional: IPG, Raycus, MAX, Synrad, JPT

different power for optional:10W, 20W, 30W, 50W, 100W

2. Galvanometer

Germany imported, high speed and precision

ring laser marking machine

ring marking machine

3. Lens

Wavelength (import from Singapore)

4. JCZ controller

bracelet fiber laser marking machine

bracelet laser marking machine

5. Red pointer

Assist to adjust the focus length

6. Rotary device

for optional

bracelet marking machine


4.Machine applicaition


According to the type of laser, laser marking machine mainly has three types:fiber laser marking machine, CO2 laser marking machine and UV laser marking machine.


(1) Ring engraving machine are mostly used for metal materials, and are widely used in integrated circuit chips, computer parts, industrial bearings, watches, electronic and communication products, aerospace equipment, various auto parts, home appliances, hardware tools, molds, wires. Marking and text marking in many areas such as cables, food packaging, jewelry, tobacco, and military, as well as high volume production lines.

  jewelry fiber laser marking machine jewelry laser marking machine jewelry marking machine fiber laser marking machine


JPT MOPA laser marking machine is a special type fiber laser marking machine. It has two obvious advantages in two fields:one is black marking on the aluminum, the marking is really very black. The other is color marking on the stainless steel, it can mark different color on the metal.

ring fiber laser marking machine  ring laser marking machine


(2) CO2 laser marking machines are mostly used for nonmetal, such as electronic components, instrumentation, clothing, leather, luggage, shoes, buttons, glasses, medicine, food, beverages, cosmetics, packaging, electrical equipment and other fields. Suitable for marking, engraving, hollowing and cutting of various nonmetallic and products. Marking, engraving, hollowing, and cutting of various characters, symbols, graphics, images, barcodes, serial numbers, etc.

ring laser marking machine  ring marking machine bracelet fiber laser marking machine bracelet laser marking machine


(3) UV laser marking machine for flexible pcb board marking, dicing, silicon wafer micro-hole, blind hole processing, LCD liquid crystal glass two-dimensional code marking, glass surface punching, metal surface plating marking, plastic buttons , electronic components, gifts, communication equipment, building materials, etc.

bracelet marking machine jewelry fiber laser marking machine jewelry laser marking machine

Ring fiber laser marking machine can engrave metal and a variety of nonmetal. It is more suitable for process products that require fine precision and high precision.

Ring laser marking machine for stainless steel is used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses and watches, jewelry, auto parts, plastic buttons, building materials, PVC pipes, medical equipment, clothing accessories, Pharmaceutical packaging, alcohol packaging, architectural ceramics, beverage packaging, fabric cutting, rubber products, shell nameplates, craft gifts, electronic components, leather and other industries. And other industries.

Ring marking machine for metal is suitable for different materials: common metals and alloys (all metals such as iron, copper, aluminum, magnesium, zinc, etc.), rare metals and alloys (gold, silver, titanium), metal oxides (all metal oxides), special surfaces Treatment (phosphating, aluminum anodizing, plating surface), ABS material (electrical appliance casing, daily necessities), ink (transparent button, printed product), epoxy resin (encapsulation and insulation of electronic components).



5. Software and support file


Ring engraving machine has a easy operation software ezcad

1. Software support Win7, Win8, Win10, both 32 bit and 64 bit.

2. Software support both vector and bitmap. It support the file designed by AI, Corel draw, Auto cad, Photoshop etc.

3. Software support different languages: Chinese, English, Korean, Japanese.


jewelry marking machine


6. Company


Shandong changzhou CNC Equipment Co.,Ltd. is established in 2008, Locates in jinan city of Shandong province. We are a manufacturer of laser machine, digital cutting machine, CNC router. All machines gain CE, FDA, ISO 9001 certificate. We have design team, quality inspector team, after sales service team to make sure the high quality machine and service.

fiber laser marking machine

ring fiber laser marking machine

ring laser marking machine



7. Service


1. We supply 2 years warranty.  You can come our factory to learn the fiber laser marking machine for metal, it’s free of charge.

2. Operation manual and training video of bracelet laser marking machine are available.

3. Online face to face training is offered for the ring laser engraving machine, our engineers can speak English.

4. 24 hours technical support is available.

5. Quality inspect team will fully check and test the bracelet marking machine before shipment to ensure high performance and high stability.

ring marking machine

bracelet fiber laser marking machine


8. FAQ


(1) How to choose a right ring laser engraving machine?

Please share your material and application to us, we will recommend the right ring laser marking machine.

(2) Is the software free?

Yes, the software of the ring fiber laser marking machine is free.

(3) Is the laser marking machine easy to use?

Yes, ring laser marking machine is easy to operate. we supply operation manual and video.

You can operate the machine in two days with our assist.

(4) welcome your inquiry if any other questions.
