You are here: Home » Products » Laser marking machine » Fiber Laser Marking Machine For Stainless Steel Metal Tube

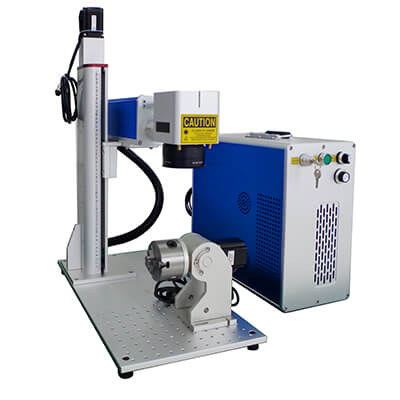

Fiber Laser Marking Machine For Stainless Steel Metal Tube

According to the type of laser, laser marking machine mainly has three types:fiber laser marking machine, CO2 laser marking machine and UV laser marking machine.
Laser Power:
Laser Source:
Cooling style:
Control System:
Rotary Device :
Availability:
  • CZ-M2
  • Changzhou
  • CZ-M2-012
Product Description

Fiber Laser Marking Machine For Stainless Steel Metal Tube


1.Machine video



2.Machine Parameters

fiber laser marking machine



Marking Area

110*110mm-300*300mm

Laser Source

IPG,Raycus,Max,JPT,Synrad

Laser Power

20W,30W,50W,100W

Lens

Wavelength(import from Singapore)

Galvanometer

Sino-galvo

Life Time

>100000h

Marking speed

≤12000mm/s

Rotary device

For optional

Computer

Lenovo

Cooling

Air cooling

Wavelength

Sino-galvo
Elevator  500mm-800mm

Power requirement

220v/110v,50hz/60hz

File format

JPG,BMP,DWG,DXF,AI,PLT, etc.

Suitable material

metal,wood,acrylic,glass,crystal,PVC,PCB,plastic etc


3. Machine Description


 The laser source generates a pulsed light wave, the laser light beam is expanded by the beam expander and transmitted to the scanning galvanometer. The scanning mirrors of the X-axis and the Y-axis direction are driven by the servo motor to perform optical scanning, The lens focuses the laser to concentrate the laser energy and mark on the work plane. The entire process is controlled by the computer program.


laser marking machine

1. Laser source

different brand for optional: IPG,Raycus,MAX,Synrad,JPT

different power for optional:10W,20W,30W,50W,100W

2. Galvanometer

Germany imported,high speed and precision

laser marking machine for stainless steel
laser marking machine for metal

3. Lens

Wavelength(import from Singapore)

4. JCZ controller

fiber laser marking machine for stainless steel
fiber laser marking machine for metal

5. Red pointer

Assist to adjust the focus length

6. Rotary device

for optional

laser marking machine for stainless steel tube


4.Machine applicaition


According to the type of laser, laser marking machine mainly has three types:fiber laser marking machine, CO2 laser marking machine and UV laser marking machine.


(1) Fiber laser marking machines are mostly used for metal materials, and are widely used in integrated circuit chips, computer parts, industrial bearings, watches, electronic and communication products, aerospace equipment, various auto parts, home appliances, hardware tools, molds, wires. Marking and text marking in many areas such as cables, food packaging, jewelry, tobacco, and military, as well as high-volume production lines.

  laser marking machine for metal tube fiber laser marking machine for stainless steel tube fiber laser marking machine for metal tube fiber laser marking machine


JPT MOPA laser marking machine is a special type fiber laser marking machine,it has two obvious advantages in two fields:one is black marking on the alumina and aluminum,the marking is really very black.the other is color marking on the stainless steel,it can mark different color on the metal.

laser marking machine  laser marking machine for stainless steel


(2) CO2 laser marking machines are mostly used for non-metallic materials, such as electronic components, instrumentation, clothing, leather, luggage, shoes, buttons, glasses, medicine, food, beverages, cosmetics, packaging, electrical equipment and other fields. Suitable for marking, engraving, hollowing and cutting of various non-metallic materials and products. Marking, engraving, hollowing, and cutting of various characters, symbols, graphics, images, barcodes, serial numbers, etc.

laser marking machine for metal  fiber laser marking machine for stainless steel fiber laser marking machine for metal laser marking machine for stainless steel tube


(3) UV laser marking machine for flexible pcb board marking, dicing, silicon wafer micro-hole, blind hole processing, LCD liquid crystal glass two-dimensional code marking, glass surface punching, metal surface plating marking, plastic buttons , electronic components, gifts, communication equipment, building materials, etc.

laser marking machine for metal tube fiber laser marking machine for stainless steel tube fiber laser marking machine for metal tube

Fiber laser marking machine can engrave metal and a variety of non-metallic materials. It is more suitable for processing products that require fine precision and high precision.

Laser marking machine for stainless steel is used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses and watches, jewelry, auto parts, plastic buttons, building materials, PVC pipes, medical equipment, clothing accessories, Pharmaceutical packaging, alcohol packaging, architectural ceramics, beverage packaging, fabric cutting, rubber products, shell nameplates, craft gifts, electronic components, leather and other industries. And other industries.

Laser marking machine for metal is suitable for different materials : common metals and alloys (all metals such as iron, copper, aluminum, magnesium, zinc, etc.), rare metals and alloys (gold, silver, titanium), metal oxides (all metal oxides), special surfaces Treatment (phosphating, aluminum anodizing, plating surface), ABS material (electrical appliance casing, daily necessities), ink (transparent button, printed product), epoxy resin (encapsulation and insulation of electronic components).



5. Software and support file


Fiber laser marking machine for stainless steel has a easy operation software ezcad

1. Software support Win7,Win8,Win10,both 32-bit and 64-bit.

2. Software support both vector and bitmap.it support the file designed by AI,Corel draw,Autocad,Photoshop etc.

3. Software support different languages:Chinese,English,Korean,Japanese.


fiber laser marking machine


6. Company


Shandong changzhou CNC Equipment Co.,Ltd. is established in 2008,located in jinan city of Shandong province. We are professional manufacturer of laser machine,digital cutting machine,cnc router. all machines gain CE,FDA,ISO 9001 certificate. We have professional design team,quality inspector team,after sales service team to make sure the high quality machine and service.

laser marking machine

laser marking machine for stainless steel

laser marking machine for metal



7. Service


1. We supply 2 years warranty you can come our factory to learn the fiber laser marking machine for metal,it’s free of charge.

2. Operation manual and training video of laser marking machine for stainless steel tube are available.

3. Online face to face training is offered,our engineers can speak English.

4. 24 hours technical support is available.

5. Quality inspect department will fully check and test the laser marking machine for metal tube before shipment to ensure high performance and high stability.

fiber laser marking machine for stainless steel

fiber laser marking machine for metal


8. FAQ


(1) How to choose a right machine?

Please share your material and application to us,we will recommend the right fiber laser marking machine for metal tube.

(2) Is the software free?

Yes,the software of the laser marking machine for metal is free

(3) Is the laser marking machine easy to use

Yes,fiber laser marking machine for metal is easy to operate.we supply operation manual and video.

You can operate the machine in two days with our assist.

(4) welcome your inquiry if any other questions..
