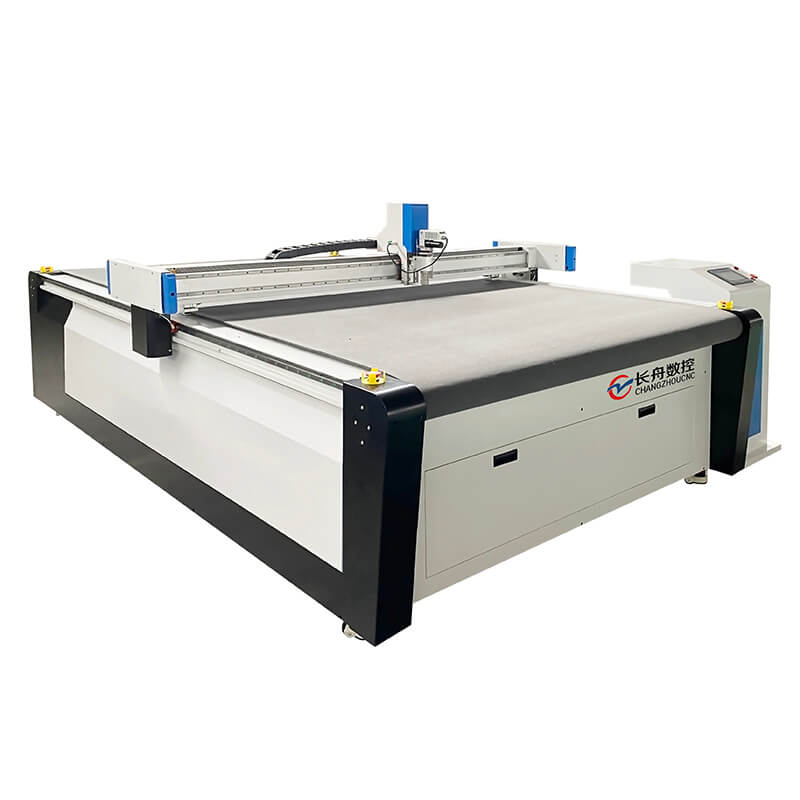

Asbestos Silicon Rubber Gasket Washer CNC Cutting Machine

Gasket cutting machine can cut asbestos, rubber, silicon gasket and etc.
Model:
Work Size:
cutting tool:
Machine Power:
Voltage:
Availability:
  • CZ-D2
  • Changzhou
  • CZ-D2-005
Product Description

Asbestos Silicon Rubber Gasket Washer CNC Cutting Machine


Gasket cutting machine can cut asbestos, graphite, rubber, silicone, non-asbestos, oil paper and other sealing materials.

Gasket making machine only needs to import CAD drawings to cut out the designed graphics, which is very suitable for the production of custom gaskets.


1. Gasket Cutting Machine Application


Gasket cutting machines can cut different gasket material like asbestos, rubber, silicon gasket.


 gasket cutting machine


It also can cut leather, fabric, textile, cardboard, plastic box, fiberglass, sticker, film, foam board, rubber, cloth, gasket, garment cloth, footwear, bags, non woven fabrics, seat cover, carpets, rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

The Tools and Functions of Oscillating Knife Cutting Machine.

1. Oscillating knife head

Gasket CNC cutting machine works by knife blades. It works fast, high precision and no burn nor smell.

2. Creasing wheel

A set of creasing wheels with different sizes can make good fold lines on cardboard.

3. degree cutting knife

This is special for making V groove on honeycomb board, gray board and etc.

4. Milling knife

This is specialized for acrylic and thin wood material cutting.

5.CCD camera

Professional for positioning for print materials. Automatic and precise.


2. Gasket Making Machine Description

gasket cutting machine



Knife Digital Cutting Head

Gasket cutting machine uses Switzerland high frequency vibration knife cutting tech. It can cut different gasket like rubber, asbestos, silicon and etc.

gasket cutting machine


Servo Motors and Drivers

Silicon cutting machine uses Japan YASKAWA or Panasonic servo motors and drivers. Ensures the machine has high precision and high work speed, long life time.

washer cutting machine


Vacuum table

Machine table is the vacuum table, vacuum pump offer high power air pressure to fix the material firmly. Make sure material won't move during cutting.

rubber gasket cutting machine


3. Machine Features


1. Gasket cutting machine can replace the manual work. All the process is digitally work. One hour of washer cutting machine work equals 5 hours of manual work.

2. Gasket making machine has a nest software. You can conduct nest with our system. Try multi layout until getting the best nest solution.

3. Rubber gasket cutting machine uses Japan YASKAWA servo motors and drivers. With Taiwan HIWIN linear guide. Makes sure the machine perfect precision.

4. Washer cutting machine cuts gasket by computer program and software. Reduces the error rate caused by person work.

5. Gasket cutting machine only needs the gasket designs. No need to make the cutting mold. It's very good for customized products.

6. The design, input, and pattern change is easy. Machine operators will enjoy a cleaner, safer work environment.


Model

CZ - 1625

Work Size

1600mm x 2500mm

Table Type

auto feeding table / flat table

Warranty

3 years for machine

Cut Speed

≤ 1600 mm / s

Cut Thickness

≤ 45mm

Location Precision

≤ 0.01mm

Safety Device

infrared sensors, responsive, safe and reliable.

Material Fixed Mode

vacuum table

Support software

Coreldraw, AI, Autocad and etc

Supply Voltage

110V / 220V / 380V, 50HZ / 60HZ

Motor and Driver

Japan Yaskawa / Taiwan Delta

Support Format

plt, ai, dxf, cdr, hpg, hpgl, etc


4. Company


Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008. Locates in Jinan city of Shandong province. We are a factory of laser machine, digital cutting machine, CNC router. All machines gain CE, FDA, ISO 9001 certificate. We have design team, quality inspector team, after sales service team to make sure the high quality machine and service.


sofa leather cutting machine


1. We have 11 years of experience in gasket cutting machine.

2. We are a famous CNC cutting machine manufacturer in China.

3. We focus on the research and develop of CNC cutting machine and related CAD software over the past 11 years.

4. Switzerland machine tools are used to improve machine capacity .

5. We use imported servo motors from Japan and straight line guide rail from Taiwan.

6. We will never be satisfied until you are satisfied.

7. Our engineering team never stop to improve our machines and service.


5. FAQ


Q1. How can I choose a suitable rubber gasket cutting machine?

Please provide us the following information. Then we can recommend you the suitable machine.

1) What materials are going to cut? Are they rolled or not?

2) What's the largest size?

3) What's the thickness?

Q2. Can you design a machine for me depend on my need?

Of course, we will give our suggest and discuss details with you to match your requirements.

Q3. What should I do if the gasket making machine has any problem in my side?

We supply online technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.

Q4. What's the warranty for the rubber gasket cutter?

Standard warranty is 2 years upon delivery.

Main parts are free of charge when problems happened because of quality problems.

We also supply life long after sales service. No matter when, you can get our best service.

Q5. If I don't know this machine, how can I operate it?

We supply face to face training and provide operating video, user manual, and phone calls to help.

Washer cutting machine is easy to learn, you can learn it within two days.
