Door Floor Rubber Mat Blanket Cushion Cutting Machine

Door Floor Rubber Mat Blanket Cushion Cutting Machine
Model:
Work Size:
cutting tool:
Machine Power:
Voltage:
Availability:
  • CZ-D2
  • Changzhou
  • CZ-D2-009

Product Description

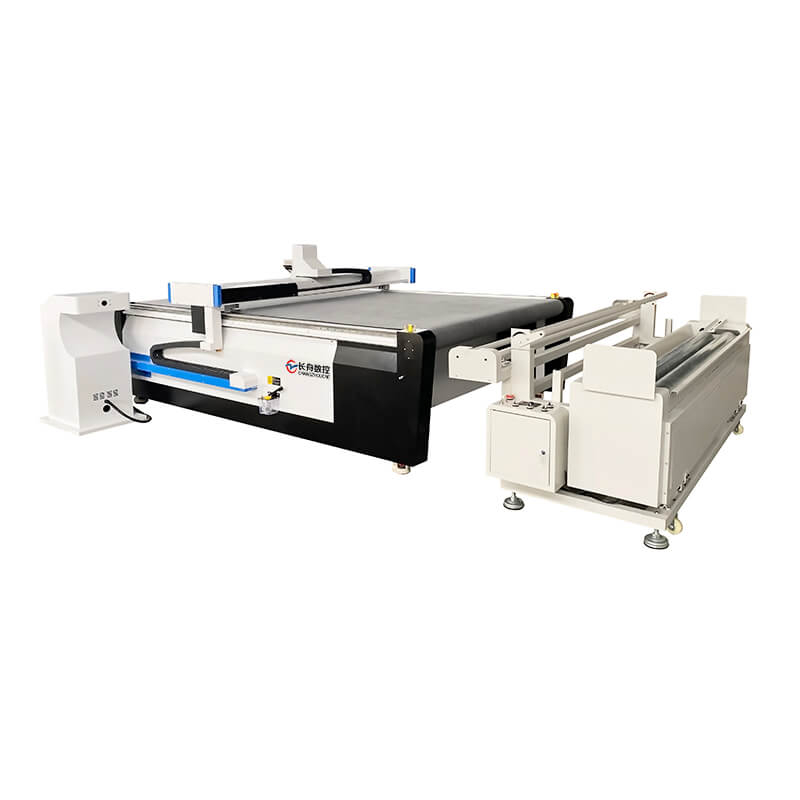

Door Floor Rubber Mat Blanket Cushion Cutting Machine


1. Machine Description


blanket cutting machine


floor mat cutting machine

◀ Knife Cutting Head

Sofa cover cutting machine uses Switzerland high frequency vibration knife cutting technology, knife blade can cut different material.

Servo Motors and Drivers

Sofa leather cutting machine uses Japanese YASKAWA servo motors and drivers, high precision and high working speed, long lifetime.

door mat cutting machine

blanket cutting machine

◀ Auto Feeding Conveyor Table

Auto feeding table can pull and move roll material forward automatically, no need to move material by manual, saves time and labor cost.

Vacuum Pump

Vacuum pump supplies high power air pressure to fix the material firmly, make sure the material won't move during cutting.

cushion cutting machine


1. Floor mat cutting machine cuts material by knife not laser, no air pollution, no burning edge, cutting speed is 5 - 8 times faster than laser machine.

2. Door mat cutting machine adopts Taiwan HIWIN/PMI square linear guide and Japanese servo motor ensures high precision and fast cutting speed.

3. High performance is guaranteed with the integrated circuit plate.

4. The application of an USD / Ethernet port makes the cutting plotters fast and convenient.

5. Cushion cutting machine is easy to operate. Cushion cutting machine is designed easy to install, setup and operate.

6. Special safety sensory device of rubber mat cutting machine meets the European standard.

7. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.


Model

CZ-1625

Table Type

auto feeding table / flat table for optional

Warranty

3 years for machine

Cutting Speed

≤ 1600mm/s

Cutting Thickness

≤ 45mm

Fixed Mode

vacuum table

Support software

Coreldraw, AI, Autocad and etc

Rated Power

11KW

Motor and Driver

Japanese Yaskawa / Taiwan Delta

Support Format

plt, ai, dxf, cdr, hpg, hpgl, etc


2. Machine Application


Compared with other cutting solutions, such as laser cutting machines, die cutting machines, multi layers cutting machines,  using our floor mat cutting machine can get a better clean and smooth cutting edge with fast cutting speed.

During the cutting process, there is no smoke pollution because our knife cutting machine using the blade to cut but not laser.

We are a factory. We can produce floor mat cutting machine exactly in accordance with your requirement.

We can provide effective cost effective cutting solution with projector and camera vision system. Our nesting software can save your cost on material.

Most important is fast cutting speed and excellent cutting performance. Our door mat cutting machine is popular in mat cutting industry.


 floor mat cutting machine


3. Company


Shandong changzhou CNC Equipment Co.,Ltd. was established in 2008, locates in Jinan city of China. We are a manufacturer of laser machine, digital cutting machine, cnc router. all machines gain CE, FDA, ISO 9001 certificate. We have design team, quality inspector team, after sales service team to make sure the high quality machine and service.


door mat cutting machine


1. We supply 3 years warranty for the door mat cutting machine.

2. We supply 3 years maintenance free of charge for the floor mat cutting machine.

3. We will provide the consumable parts at an agency price.

4. 24 hours online service, free technical support is available for the rubber mat cutting machine.

5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there are any other questions, please contact us anytime.

6. We have manual instruction and CD (with guiding videos) for software Installation, operation and machine's using and maintenance.


4. FAQ


1: What suggection will you give when I need to buy the door mat cutting machine?

Please tell us what you need to cut and your target size. We will recommend you a suitable rubber mat cutting machine according to your need.

2. How about your machine's certifications?

We have CE, ISO and FDA certificates.

3. Are you a trader or a manufacturer?

We are a famous manufacturer of floor mat cutting machine in China with 11 years experience.

4. What can your machine cut?

Knife cutting machine can cut different kind of soft materials. And it is applied in different inductries, such as shoes, bags, garment, carton boxes, composite, automotive industries, etc.

5. How to use the rubber mat cutting machine?

If you buy our blanket cutting machine, you can come to our factory to learn the machine, and we will provide free operation videos.

6. What warranty can your company provide?

We provide two years warranty for the cushion cutting machine.
